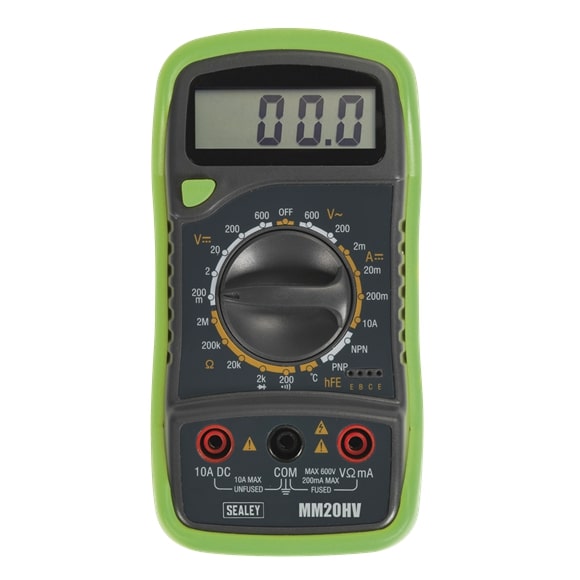

Sealey MM20HV 8-Function Hi-Vis Digital Multimeter with Thermocouple

The Sealey MM20HV is a heavy-duty general-purpose multimeter with clear and easy-to-read LCD display.

It features a data hold function, temperature probe and diode test facility.

The MM20HV is housed in a rugged rubber boot with integral stand.

It comes supplied with a full set of leads and probes

Key Features of the Sealey MM20HV

• Heavy-duty
• Easy-to-read LCD display
• Data hold function
• Temperature probe
• Diode test facility
• Rugged rubber boot with integral stand
• Supplied with full set of leads and probes
• Measures:
  - AC and DC Voltage
  - DC Current
  - Resistance
  - Temperature
  - Audible Continuity
  - Diode/Transistor Verification Mode

Technical Specifications of the Sealey MM20HV

AC Voltage (Accuracy): 200V, 600V (±2%)

DC Voltage (Accuracy): 200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%)

AC Current (Accuracy): No

DC Current (Accuracy): 2mA (±1%), 20mA (±1%), 200mA (±1.2%), 10A (±2%)

Resistance (Accuracy): 200Ω, 2kΩ, 20kΩ, 200kΩ (±0.8%), 2MΩ (±1.2%)

Capacitance (Accuracy): No

Temperature (Accuracy): Range; -40°C-1000°C, (±1% up to 400°C), (±2% over 400°C)

Frequency (Accuracy): No

Duty Cycle: No

Continuity Audible: Yes

Diode Test: Yes

Transistor Test: Yes

High-Impact Rubber Case: Yes

Digits x Height: 6 x 12mm

Low Battery Indicator: Yes

Battery (Supplied): 1 x 9V

Integral Stand: Yes

Size (L x W x D): 140 x 70 x 35mm

Weight: 260g

Conformity: IEC 1010
