Product Overview

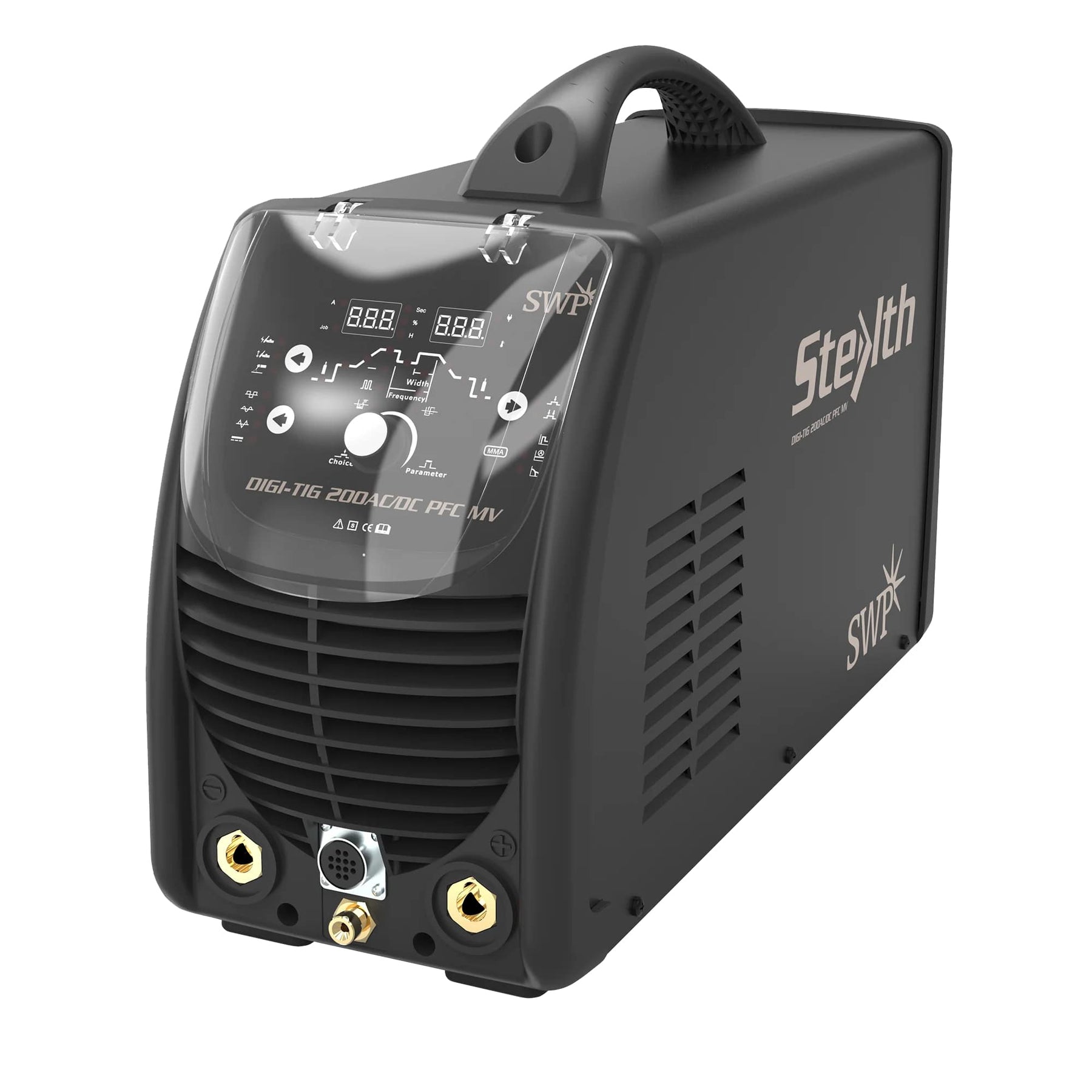

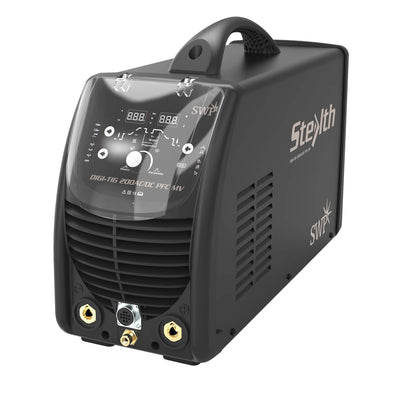

The SWP 9011H Stealth Digi-TIG 200 AC/DC Pulse PFC MV 110V/240V TIG Welding stands out with its remarkable capability to weld at 5A extra low current, offering precision and control for intricate welding applications.
Key Features of the SWP 9011H Stealth Digi-TIG 200 AC/DC Pulse PFC MV 110V/240V TIG Welding Machine:
- 0-10S Slope out - The Stealth Digi-Tig 200 AC/DC Pulse PFC offers the advantage of a 0-10S slope out feature, enhancing control and precision in welding operations for optimal results.
- 0.1-10S Pre-Gas Time Adjustment - The Stealth Digi-Tig 200 AC/DC Pulse PFC provides the benefit of a 0.1-10S pre-gas time adjustment, allowing for precise customization and optimal welding conditions.
- 0-10S Post-Gas Time Adjustment - The Stealth Digi-Tig 200 AC/DC Pulse PFC offers the advantage of a 0-10S post-gas time adjustment range, facilitating optimal shielding gas coverage and enhancing weld quality.
Technical Specifications of the SWP 9011H Stealth Digi-TIG 200 AC/DC Pulse PFC MV 110V/240V TIG Welding Machine:
Input power voltage: 110±10% - 230±10%V
Effective input current - AC (A):
+MMA: 20 - 22
+TIG: 16 - 26
Effective input current - DC (A):
+MMA: 19 - 21
+TIG: 12 - 27
Maximum (kVA): 4.2 - 7.4
Input voltage frequency (Hz): 50/60
No load voltage (V): 68
Current adjustment range (A): 5-200
Duty cycle (A) (40°C 10 min)
MMA: 30% @ 130
MMA:60% @ 110
MMA: 100% @ 80
Duty cycle (A) (40°C 10 min):
TIG: 60% @ 160
TIG: 100% @ 125
Duty cycle (A) (40°C 10 min):
DC: 35% @ 200
60% @ 140
100% @ 110
Duty cycle (A) (40°C 10 min):
AC: 60% @ 200
100% @ 155
Protection class: Ip23
Insulation class: H
Slope out (S): 0-10
Pulse width range (%): 5-95
Pre-gas time adjustment range (S): 0.1-10
Post-gas adjustment range (S): 0-10
Overall dimensions (mm): 545 x 190 x 355
Weight (kg): 15
3m Argon hose, Amphenol plug, 3m earth return lead
Included with the SWP 9011H Stealth Digi-TIG 200 AC/DC Pulse PFC MV 110V/240V TIG Welding Machine:
3m Argon hose
Amphenol plug
3m earth return lead
Buy SWP 9011H Stealth Digi-TIG 200 AC/DC Pulse PFC MV 110V/240V TIG Welding Machine online now from DW Toolshop, one of the UK and Ireland’s largest tool shops
