Product Overview

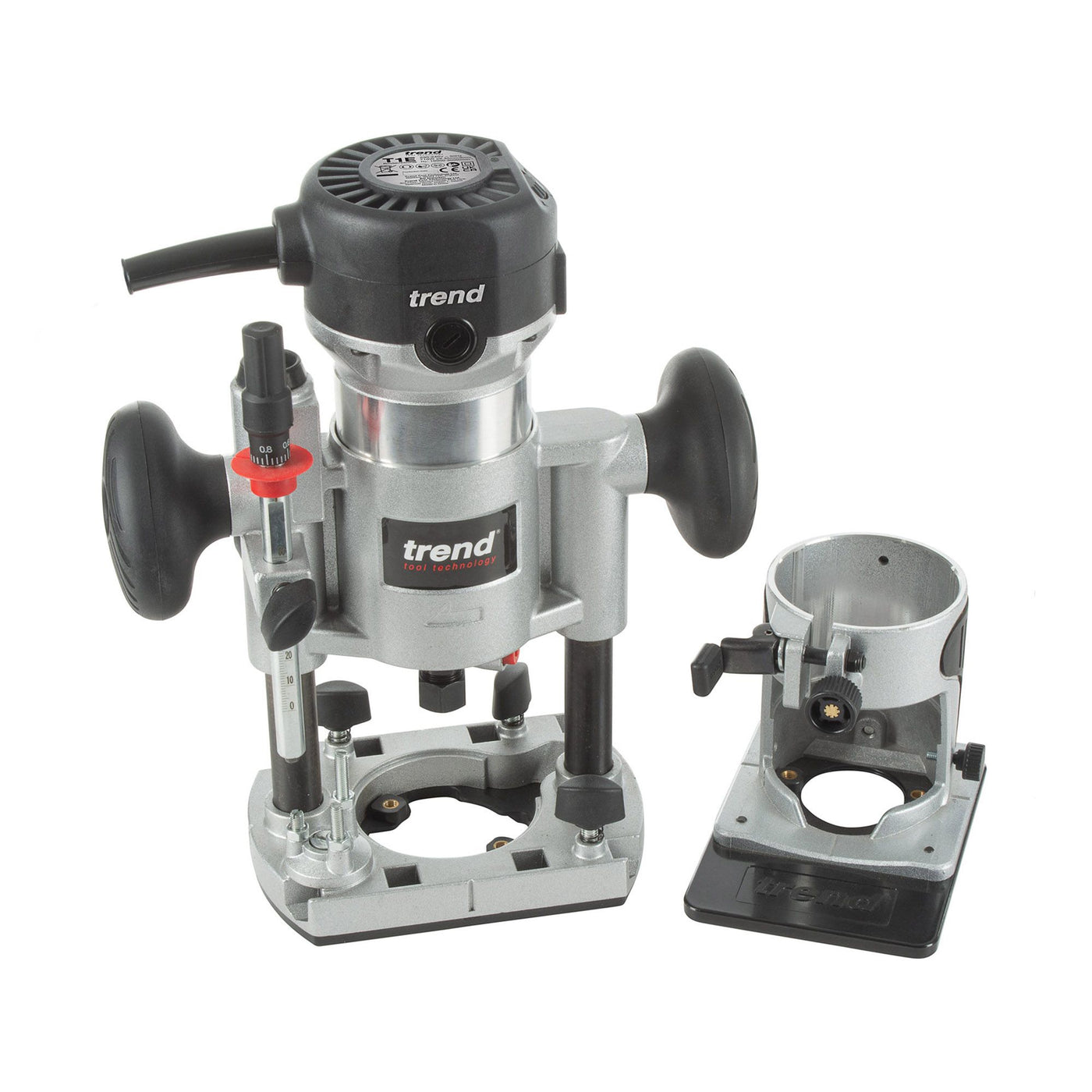

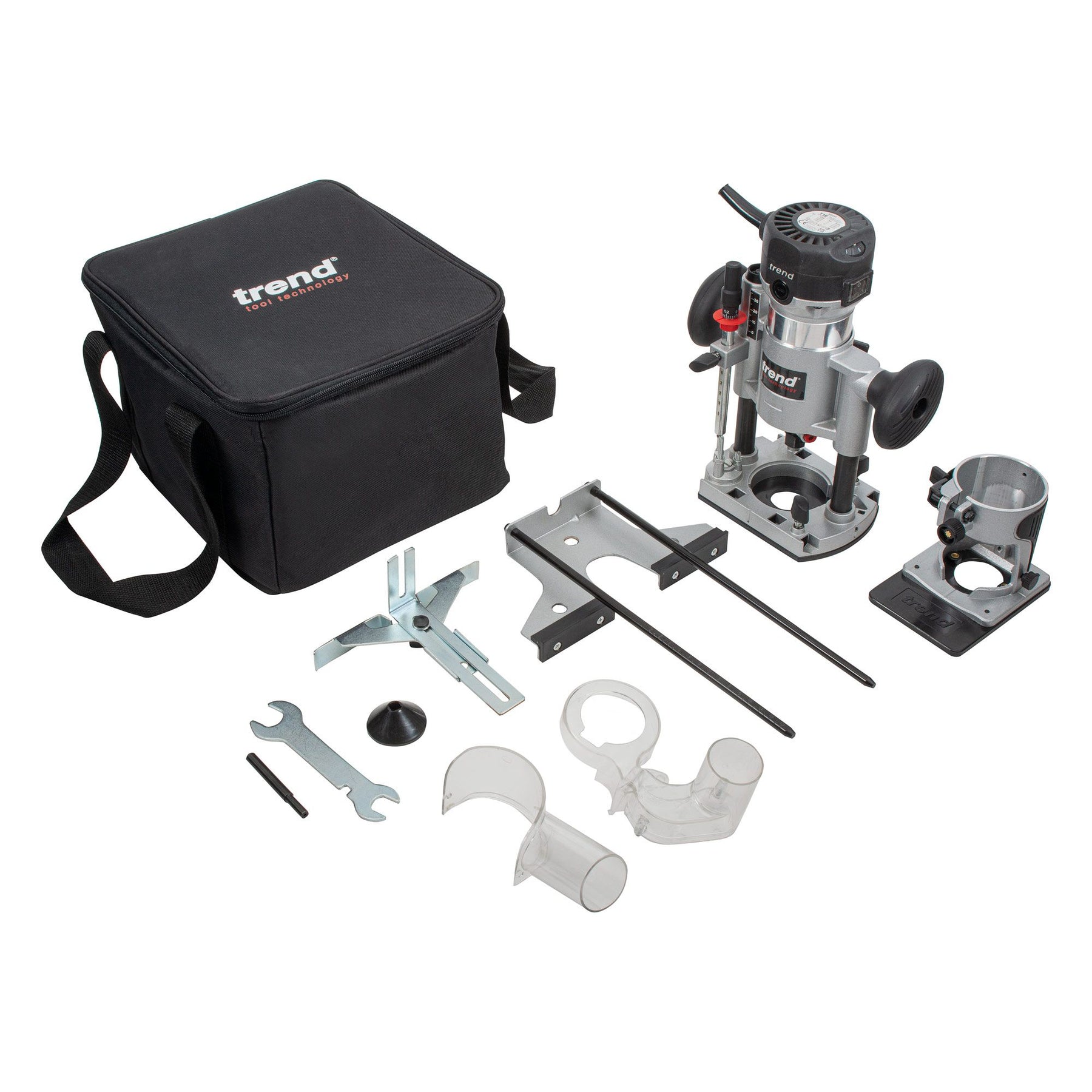

The Trend T1EPS 710W 1/4” Dual-Base Trim & Plunge Router 240V. Flexible, light and compact router with trim and plunge bases. Perfect for laminate trimming, grooving, hinge cutting and timber profiling.
Key Features of the Trend T1EPS 710W 1/4” Dual-Base Trim & Plunge Router 240V:

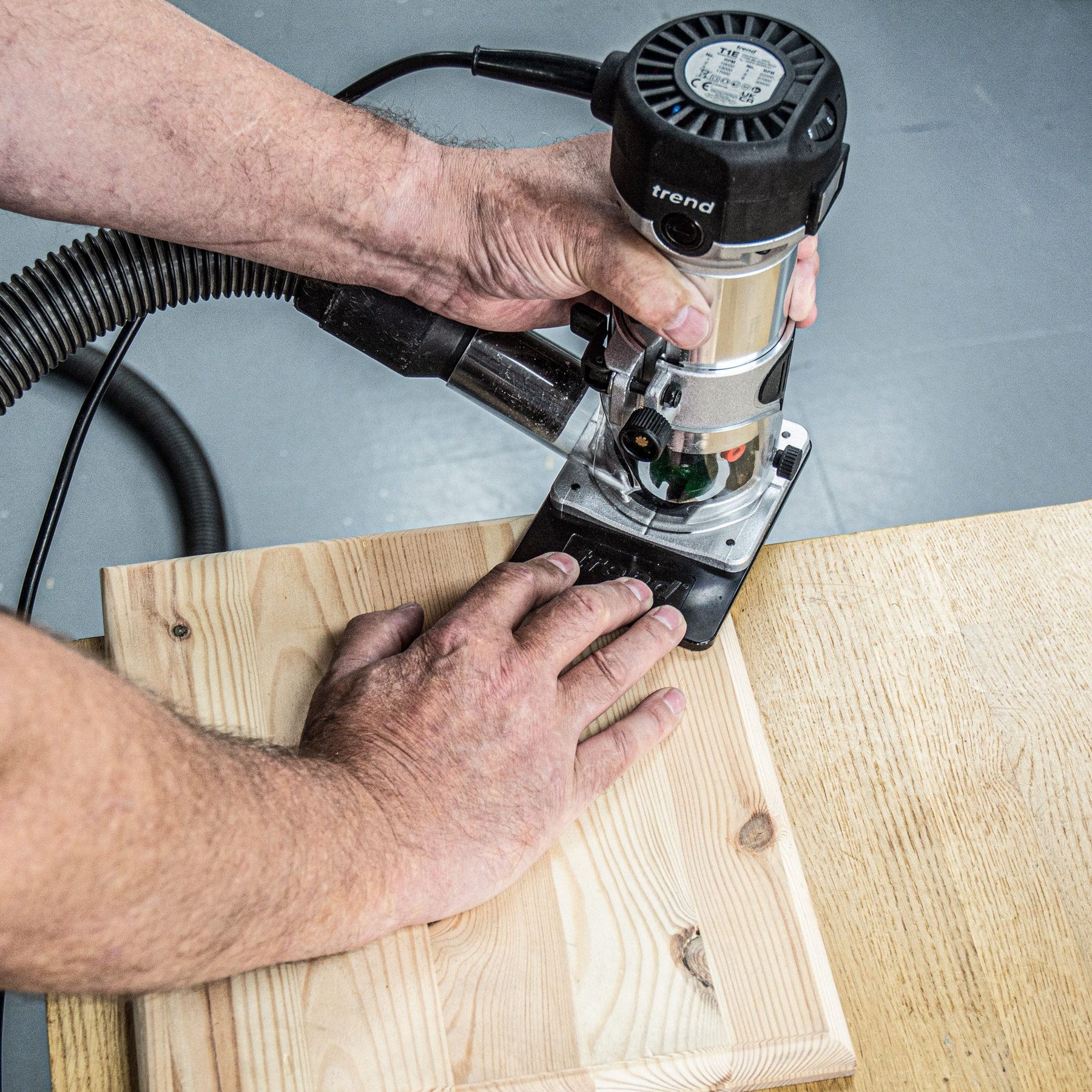

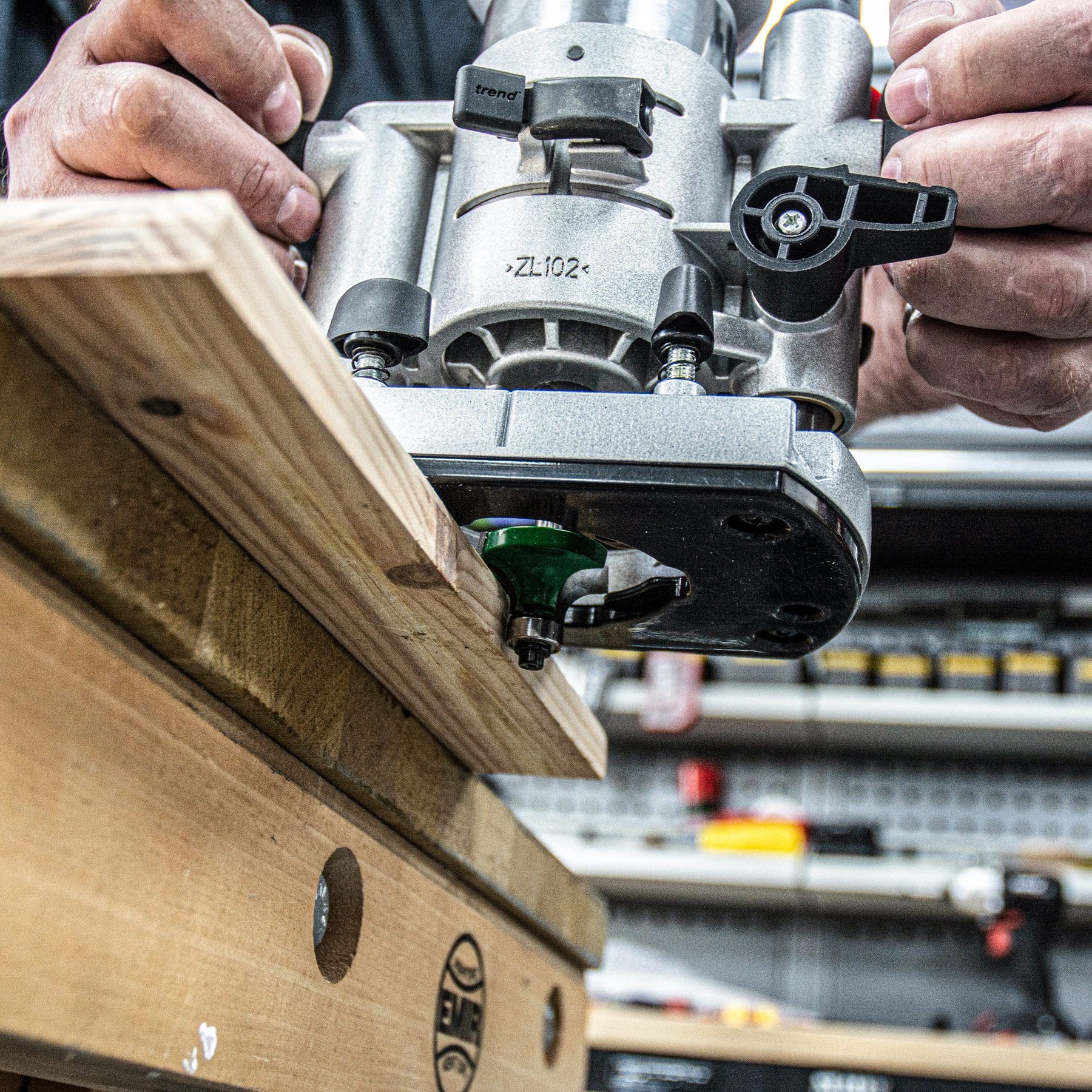

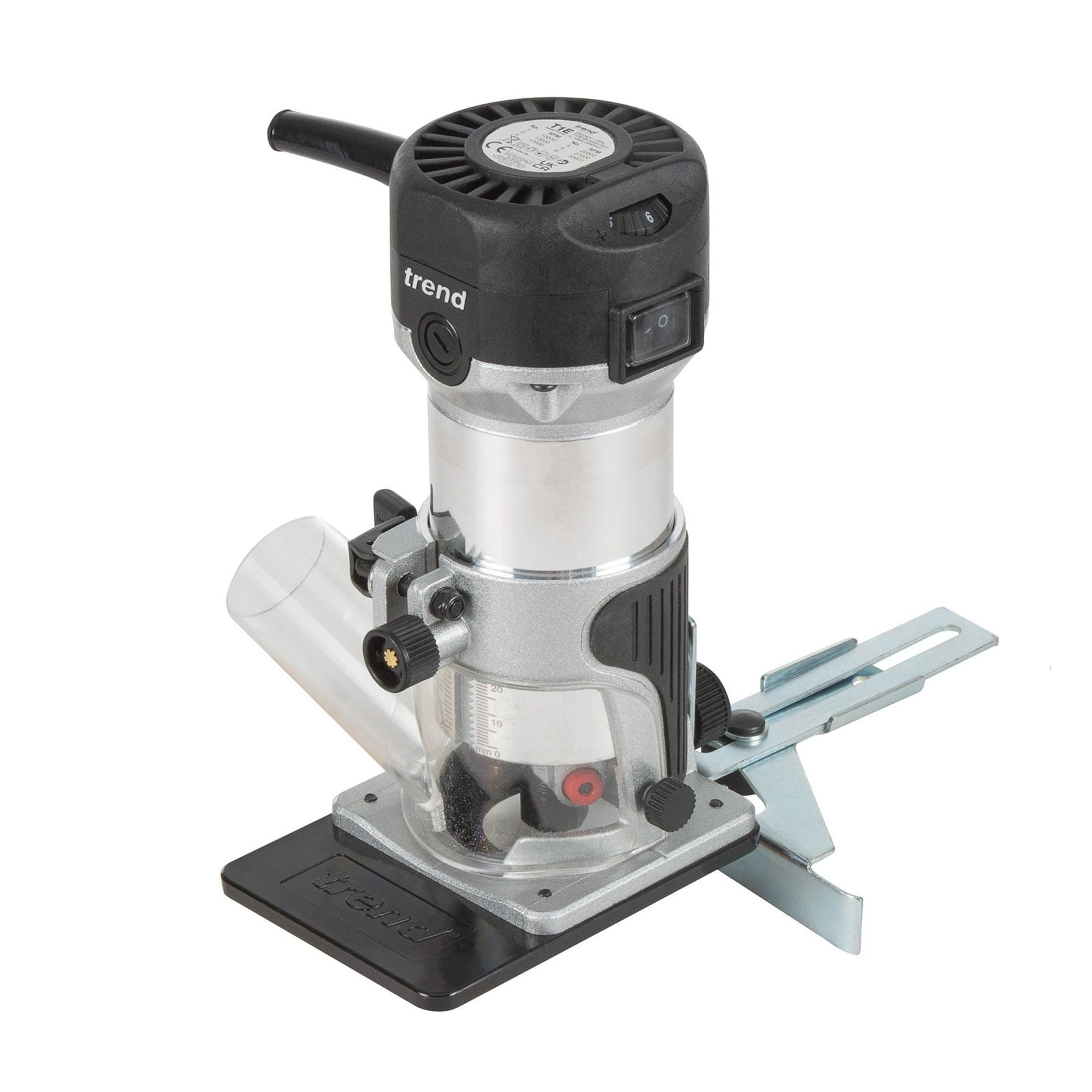

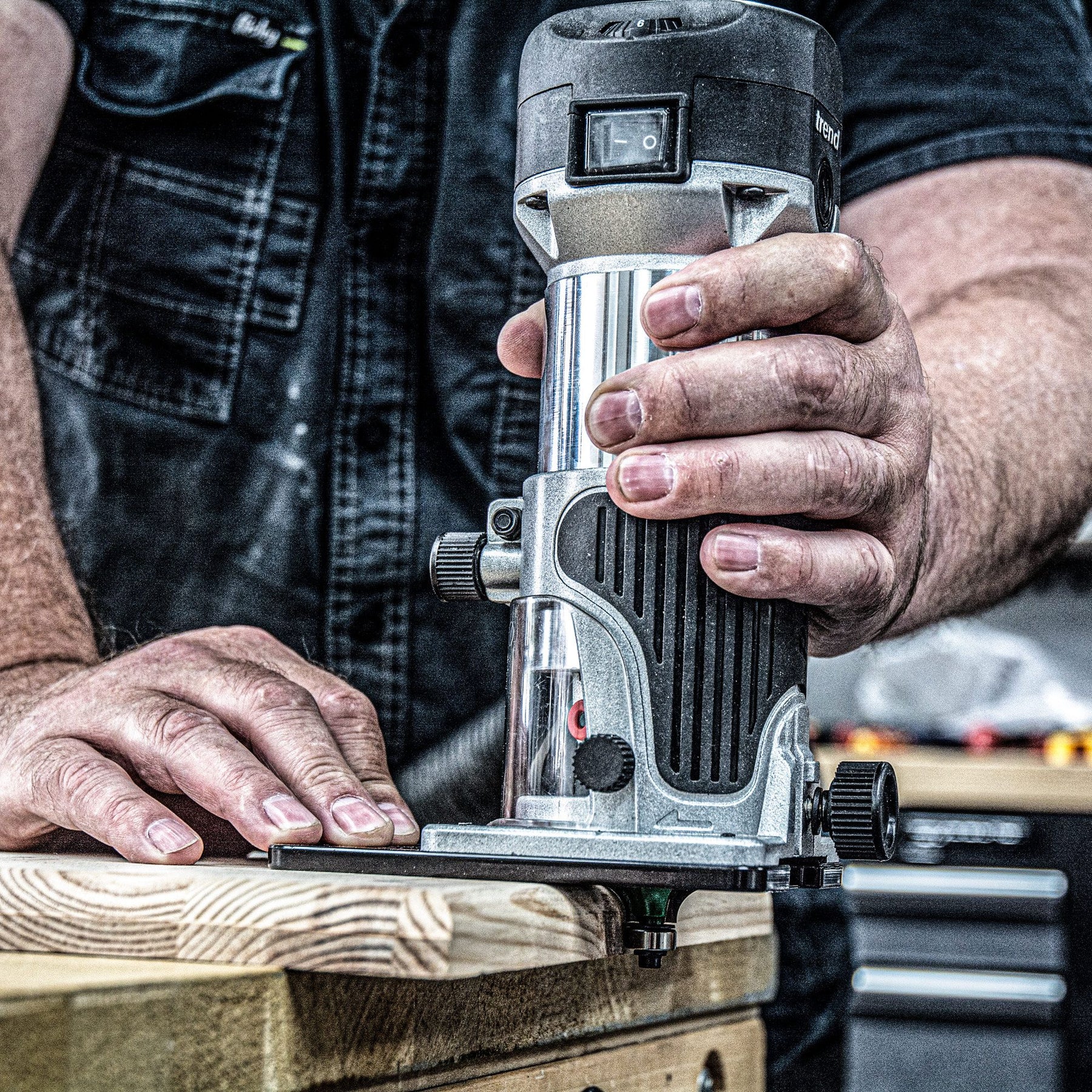

Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.

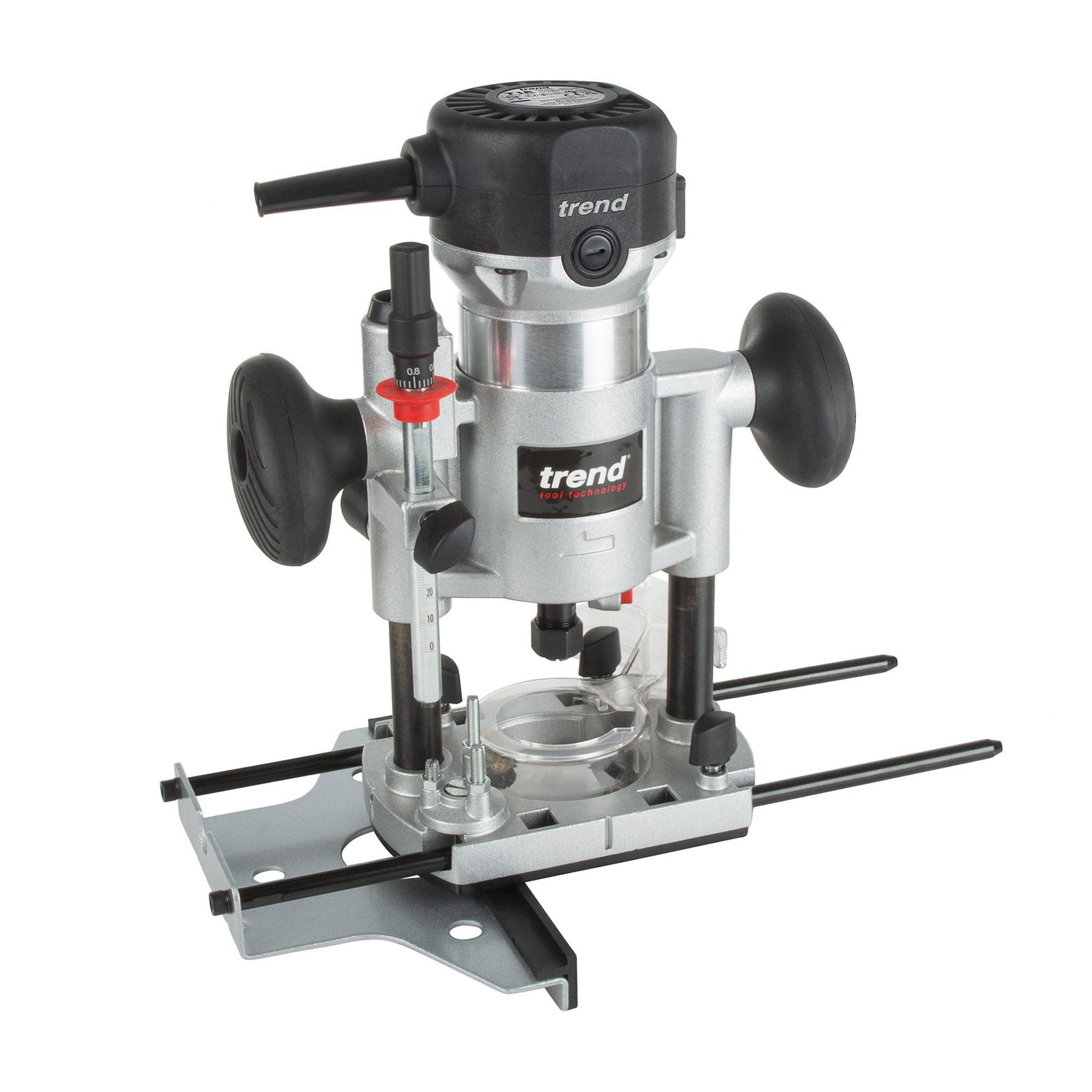

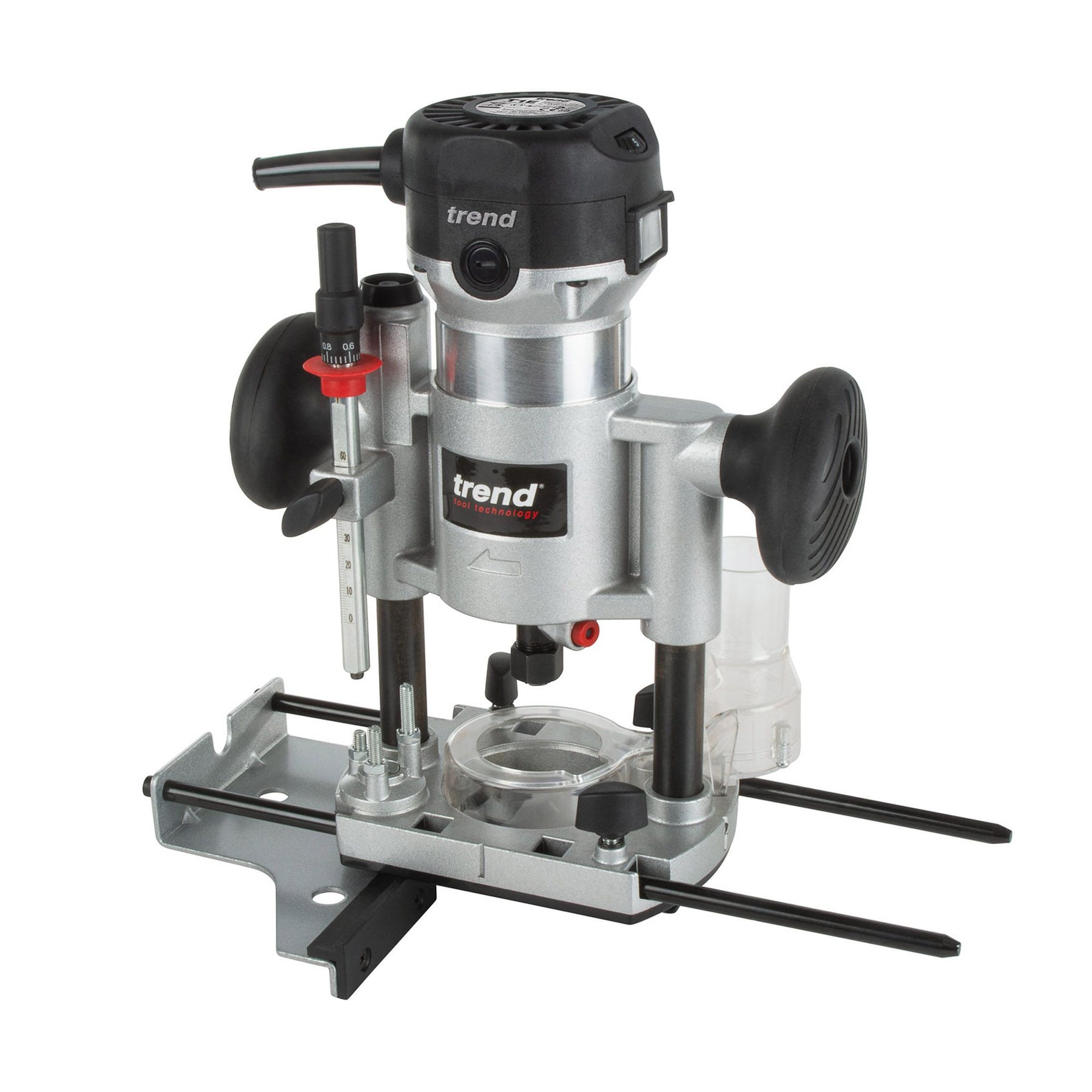

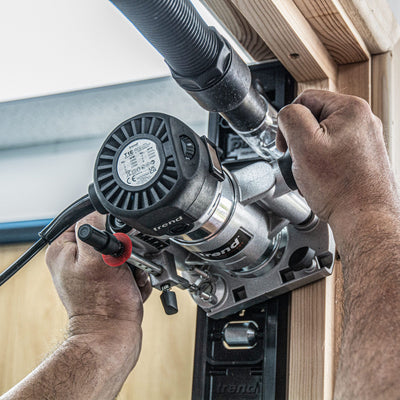

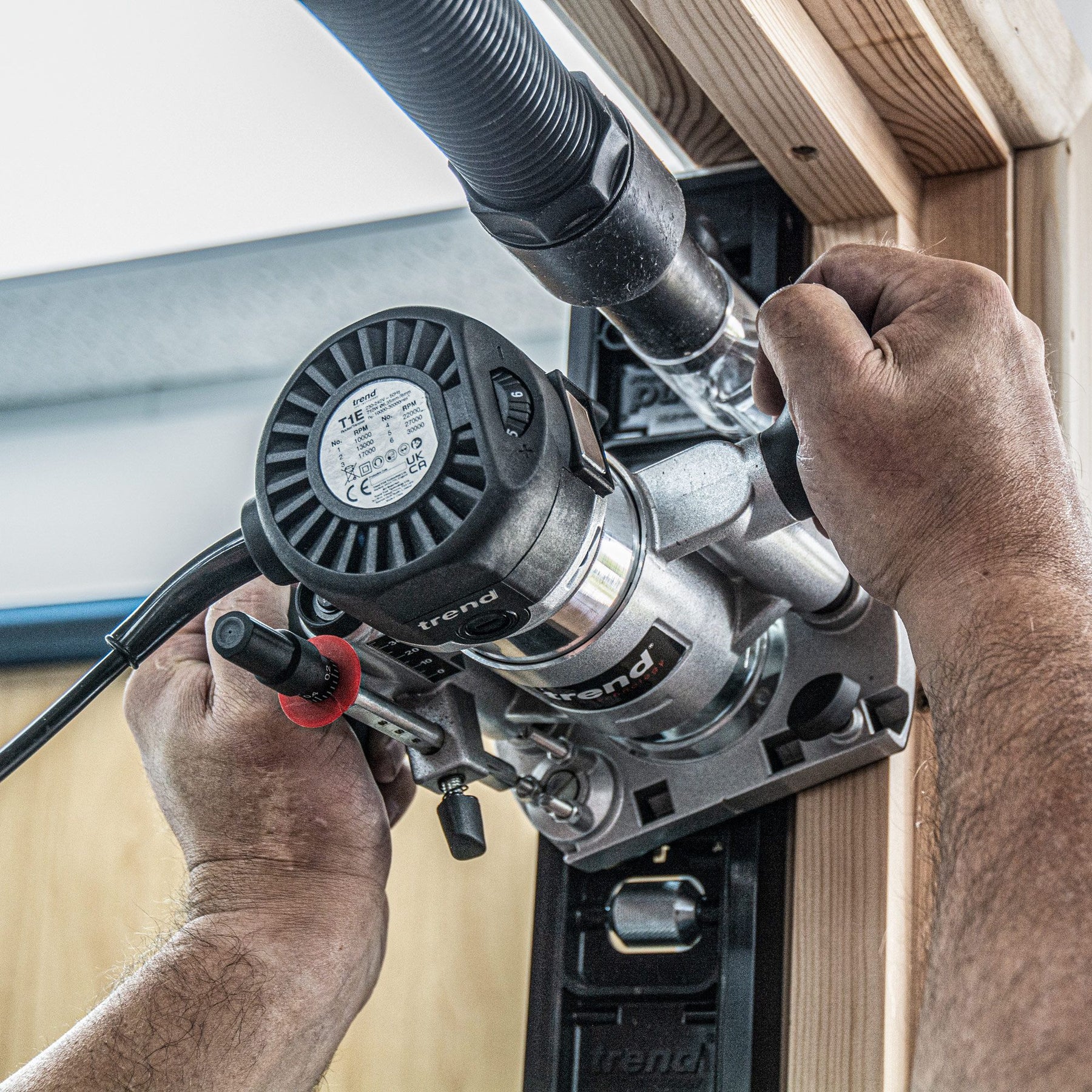

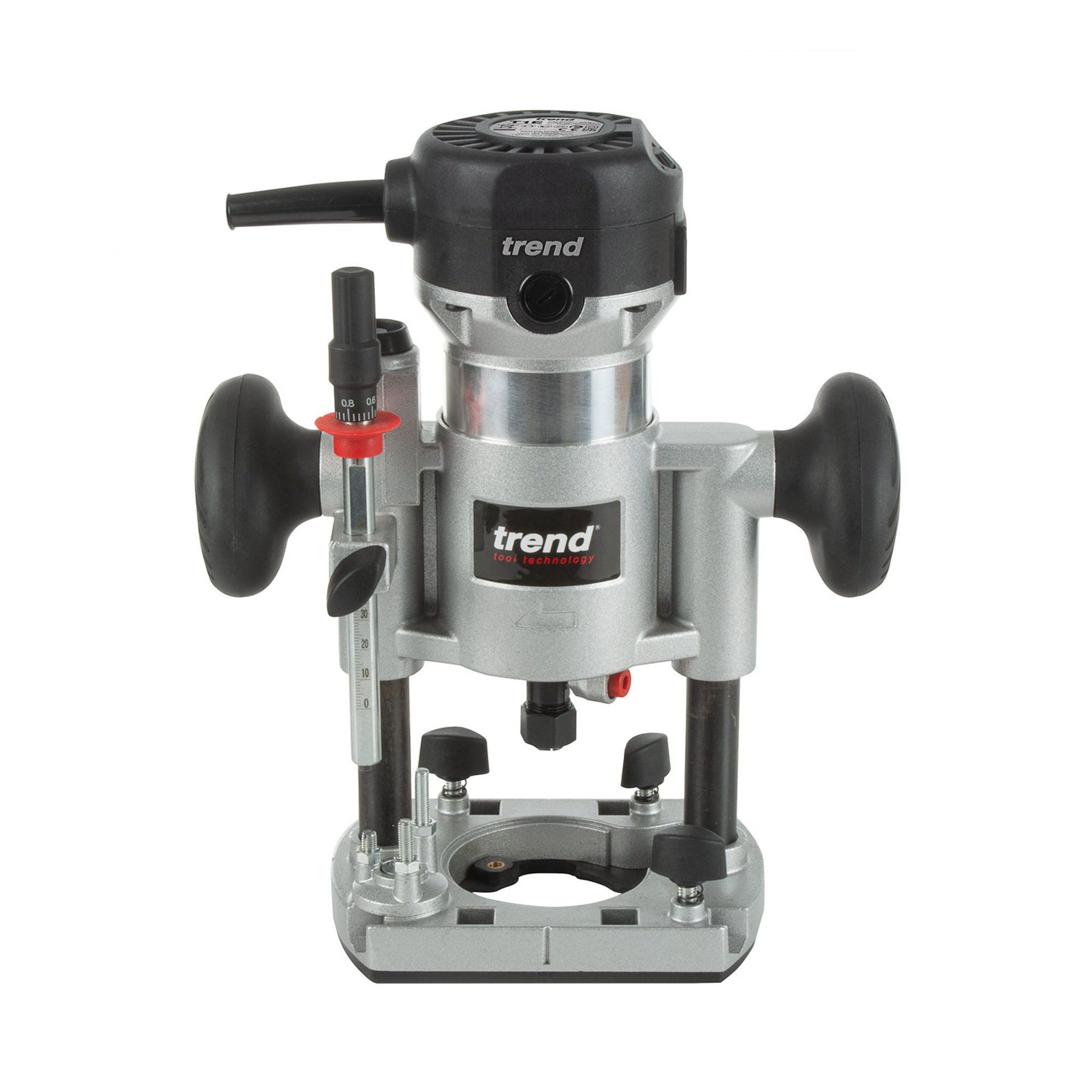

Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
Fine Height Adjuster** with an easy-to-read 0.2mm increment display for precision depth adjustments.
Height-Adjustable 3-Position Rotating Turret** for fast, repeatable batch and stepped cutting.
- Compact Inclined Handles** feature a soft grip moulding for comfortable operation.

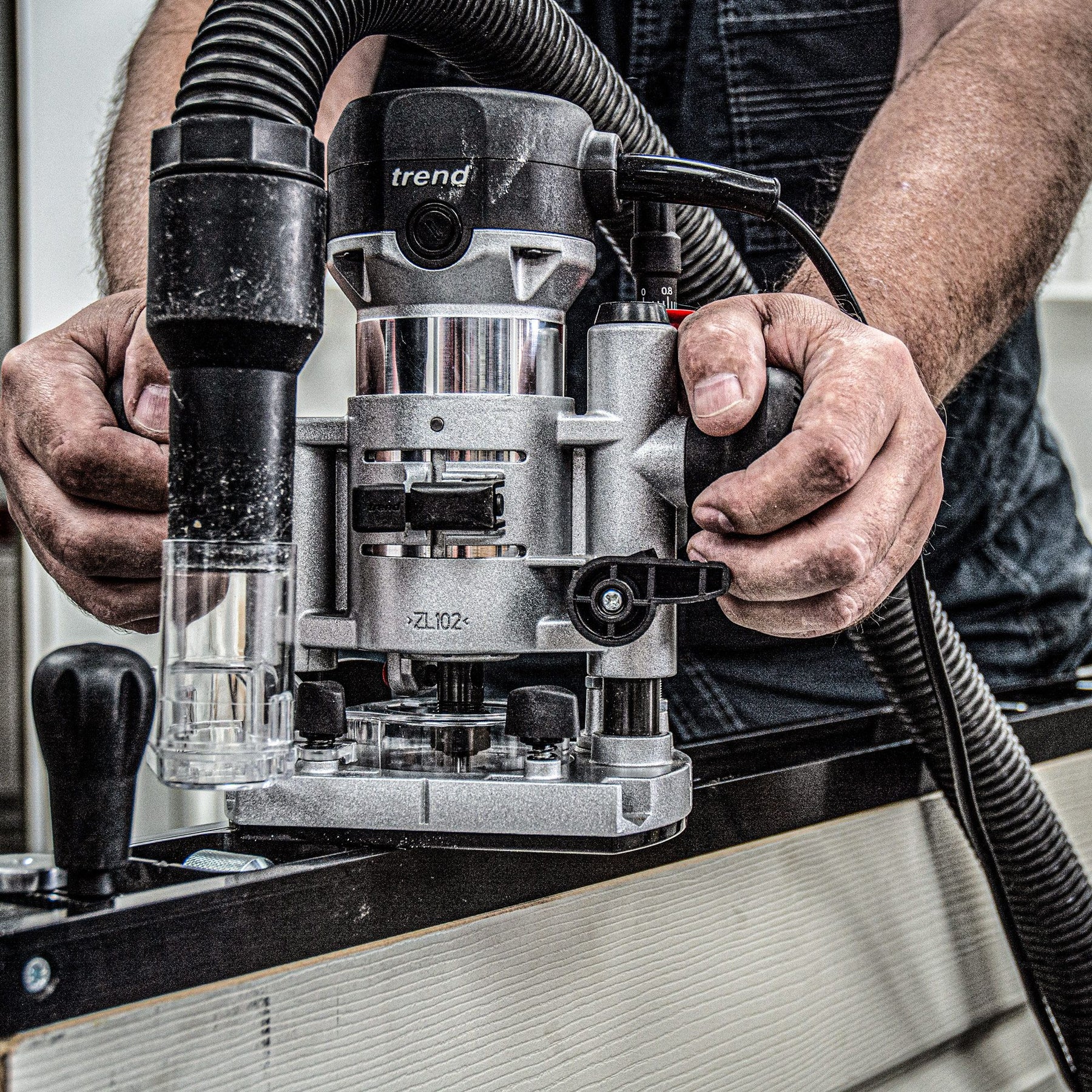

- Offset Dust Extraction Spout** for an unimpeded view of the workpiece.
- Compatible with Trend Guide Bushes for jig use, templating and inlaying.

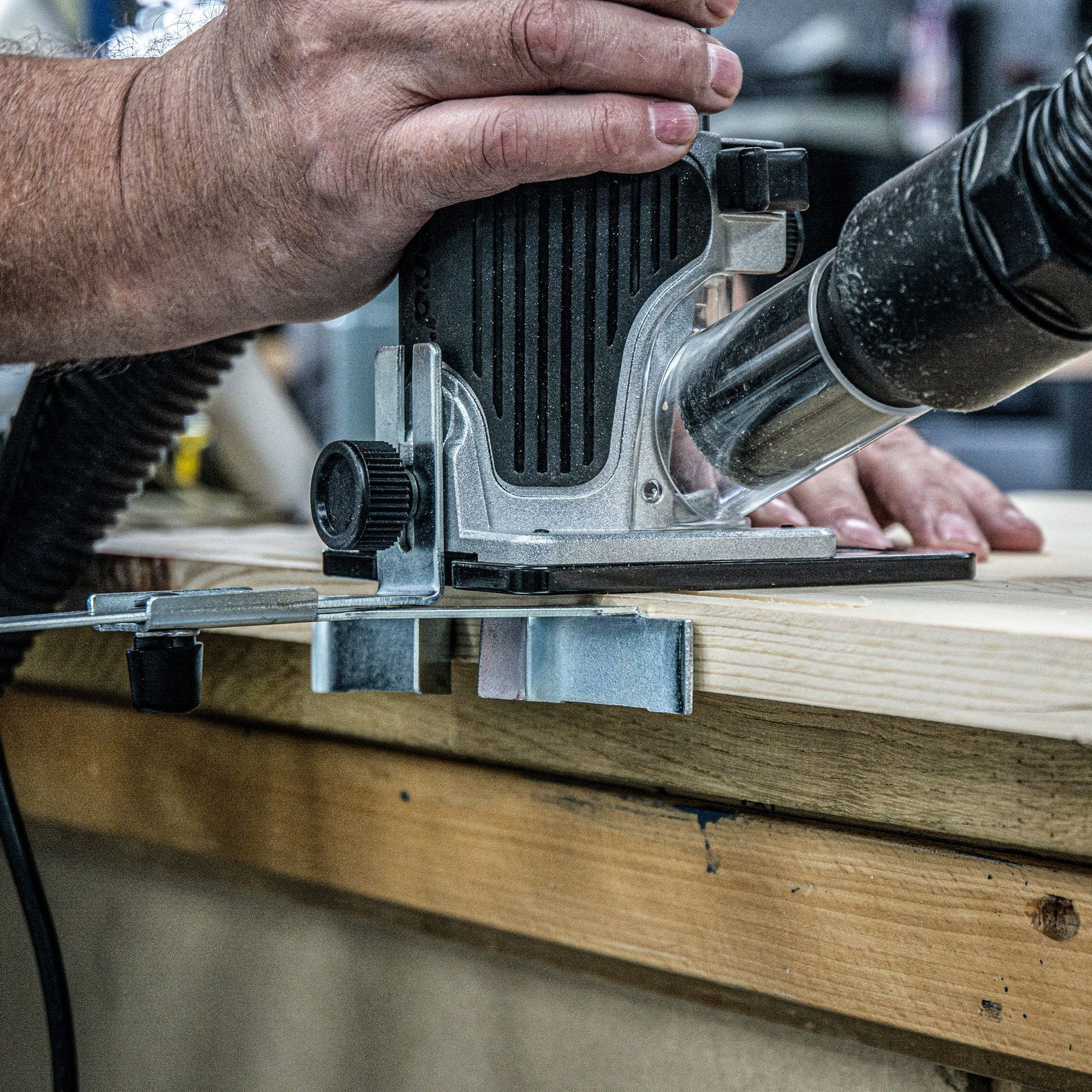

- Adjustable Side Fences for templating and edge rebating.
- *3 year warranty – Online registration required
- **Plunge base only
Technical Specifications of the Trend T1EPS 710W 1/4” Dual-Base Trim & Plunge Router 240V:
Duty Rating: Light
Motor Power: 710W
AC Voltage: 240V
Plug Type: UK 3 Pin
Supplied Collet Size: 1/4"
Plunge Stroke (Max): 60mm
Cutter Height Adjustment - Trim Base: 37mm
No Load Speed: 10,000-30,000rpm
Supplied Guide Bush: 16mm (GB160)
Fence Rod Length: 300mm
Fence Rod Centres: 84mm
Fence Rod Diameter: 8mm
Base Aperture Diameter: 40mm
Cutter Diameter (Max): 35mm
Dust Spout Internal Diameter: 35mm
Weight of Base – Trim: 0.32kg
Weight of Base – Plunge: 1.35kg
Weight of Motor Body: 1.49kg
Sound Pressure (Lpa): 85 dB(A)
Acoustic Pressure (Lwa): 96 dB(A)
Hand / Arm Vibration -Trim: 4.6m/s2
Hand / Arm Vibration – Plunge: 4.5m/s2
Power Cable Length: 3m
Router Table Compatible: No
