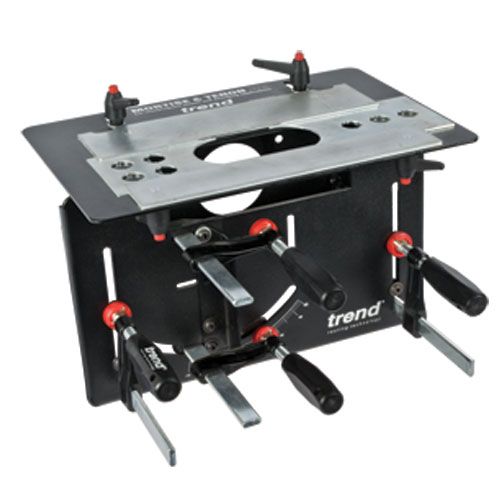

Trend MT/JIG Mortise And Tenon Jig (Imperial Size)

Product Overview

Enables mortise & tenons and dowel joints to be cut with a router. Ideal for cabinet, chair and table. CNC precision manufactured plates and body. One set-up for both mortise and tenon giving perfectly fitting joints.

Specification:
Material thickness min.=12 mm

Material thickness max.=47 mm

Tenon thickness min.=4.8 mm

Tenon thickness max.=16 mm

Tenon width max. using vertical guide+=90 mm

Tenon length max.++=Approx. 25 mm

Mortise length max. using vertical guide+++=90 mm

Angle tilt

Includes:
5 x Plastic guide bushes 15.9mm, 22.2mm, 28.6mm, 30.2mm & 31.8mm|1 x Metal guide bush 25.4mm|4 x Clamps|1 x Guide bush collar|1 x Set-up Bar imperial scale
