Sku: TREUNIBASE

Regular price£35.40
/

LocalizationDrop
£29.50 Excl. VAT
FREE SHIPPING on all orders over £50 / €75
  • Low stock - 1 item left
  • Inventory on the way
Delivery in 2 - 3 Working Days
  • Fits Most Routers
  • Ensures Concentricity
  • Robust Construction

  • FREE Shipping over £50 / €75
  • 60-day returns
  • UK Finance available over £250

Product Overview

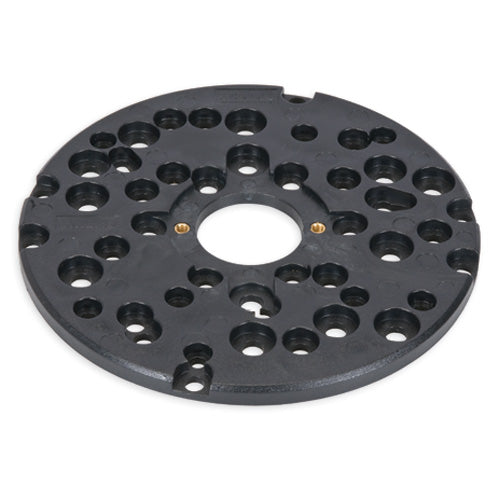

The Trend Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.

Key Features of the Trend Unibase:

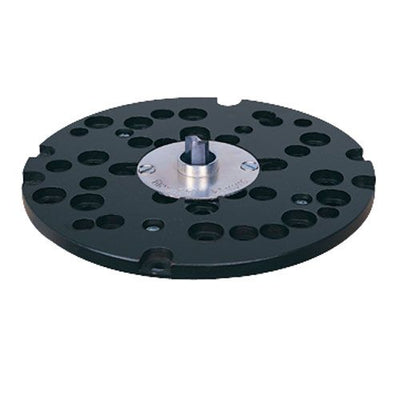

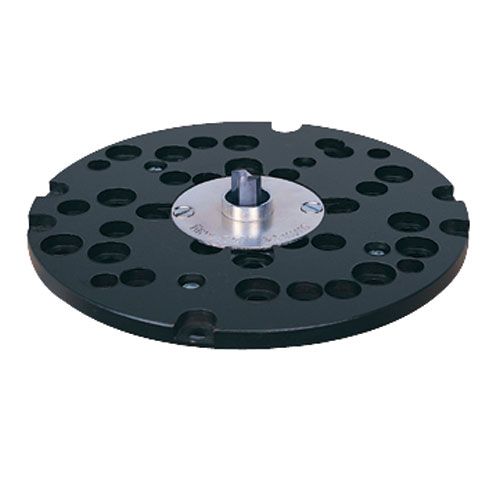

  • Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
  • Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
  • Instructions for fitting

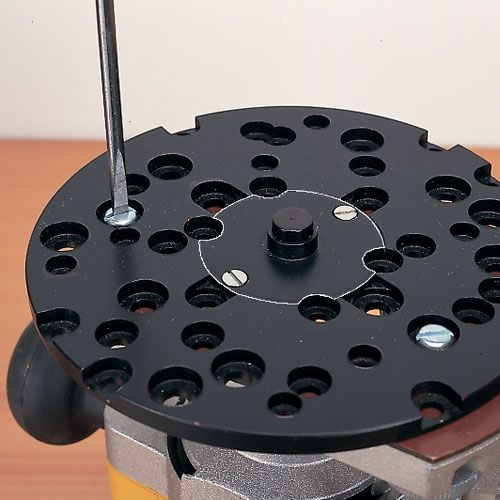

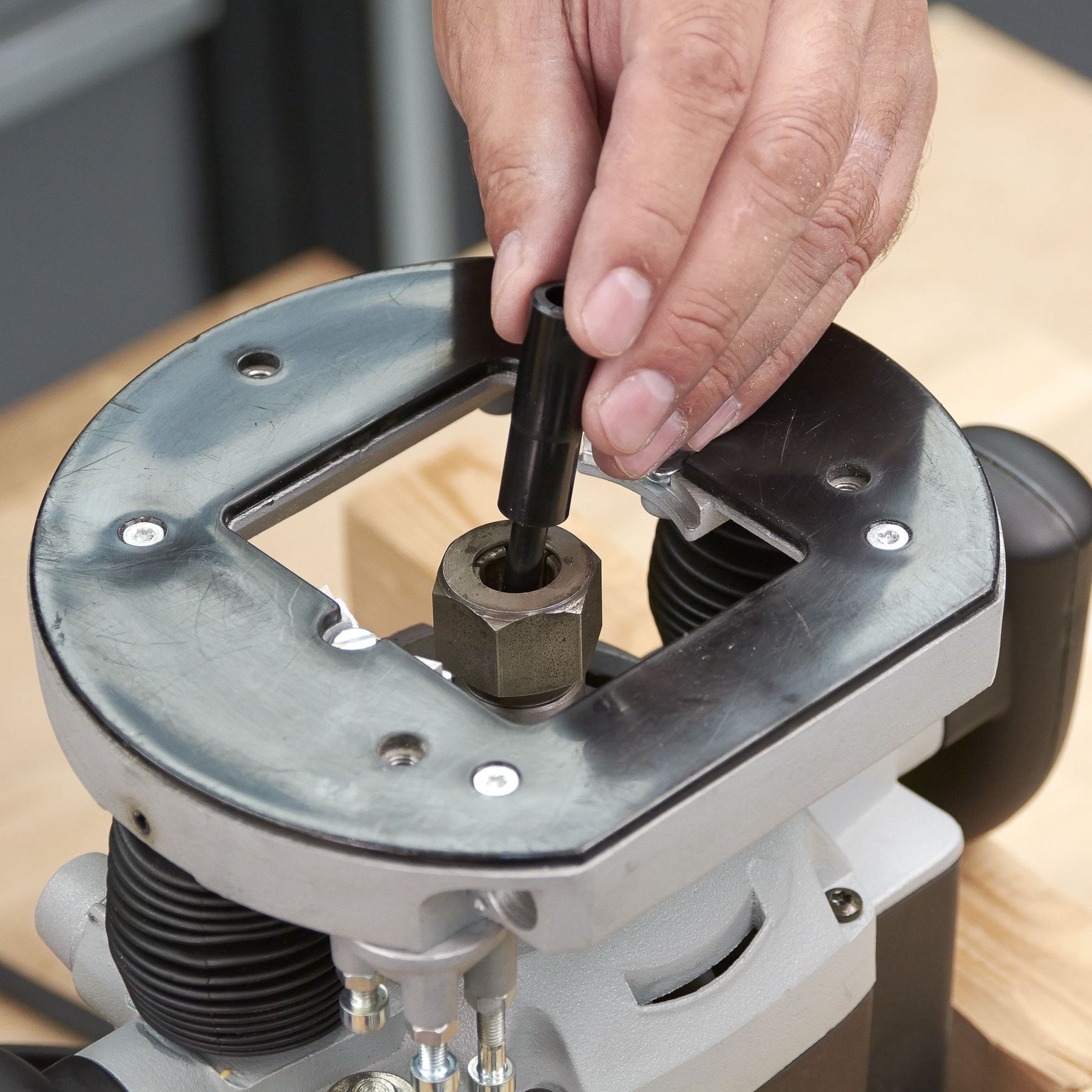

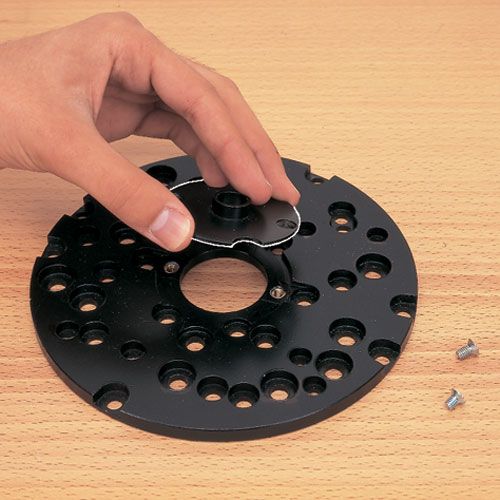

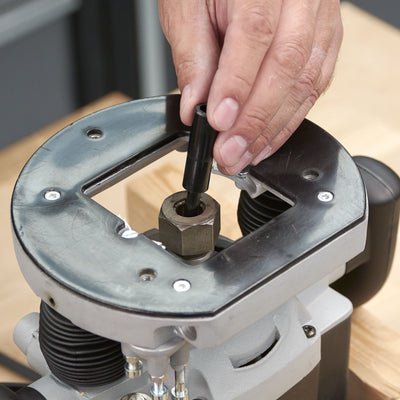

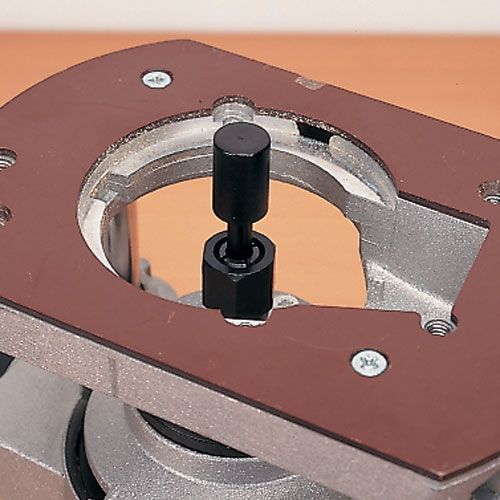

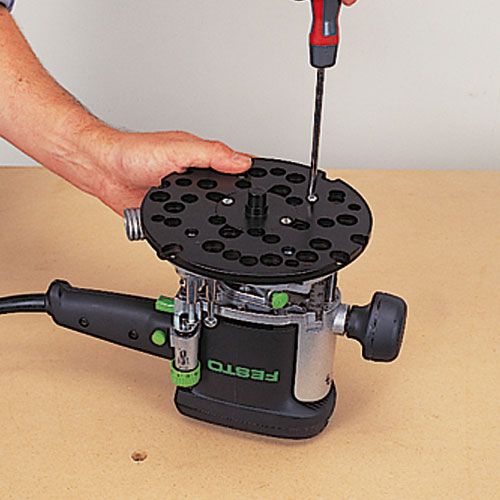

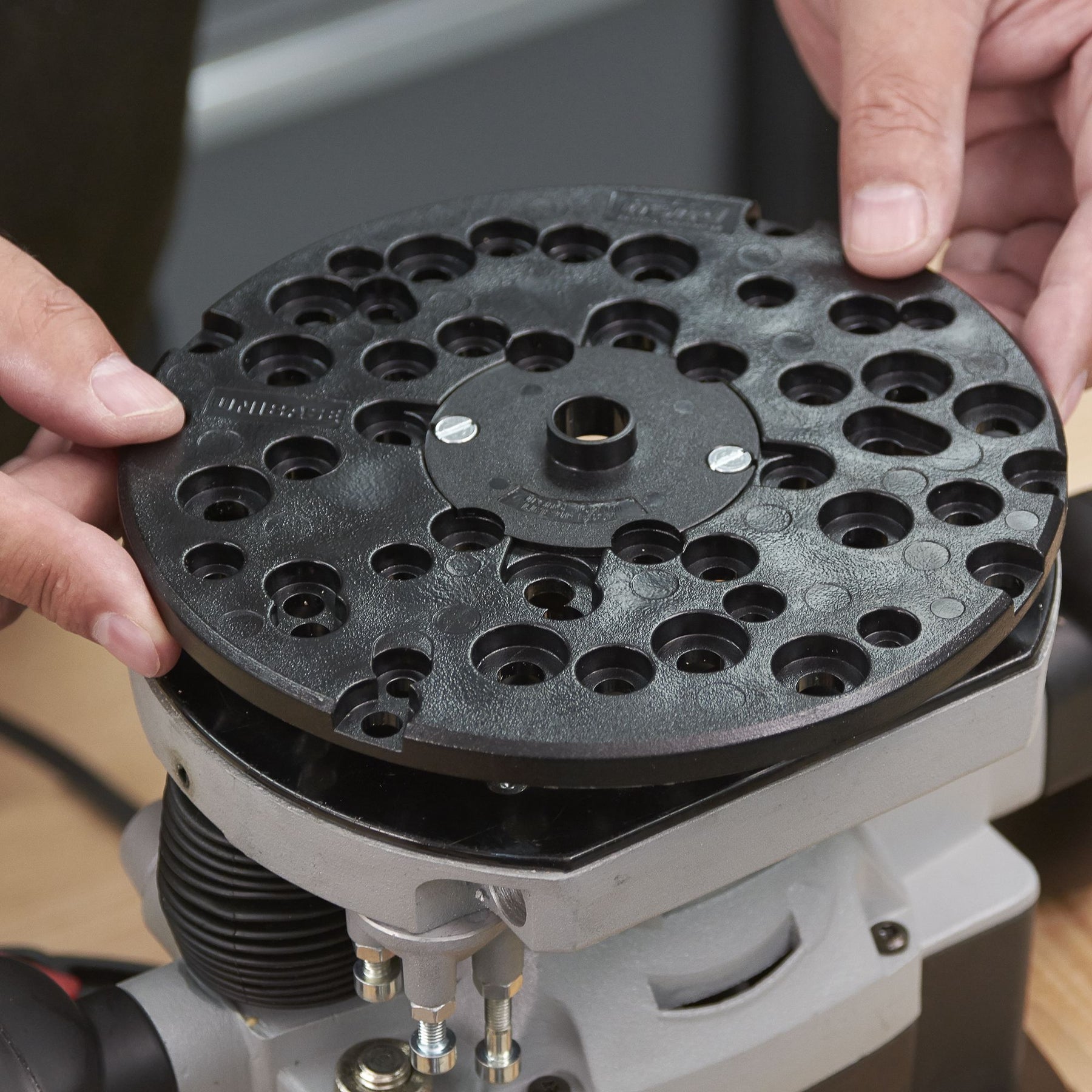

  • The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.
  • Ideal for hinge jig and lock jig

Technical Specifications of the Trend Unibase:

Diameter=170mm

Thickness=8mm

Bore=39mm

Recess=60mm

Included with the Trend Unibase:

1x Line Up Pin 8 & 12 Mm Shank

1x Guide Bush 16 Mm

1x Fixing Screw Pack
